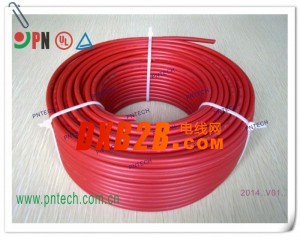

点击图片查看原图
说明:
Descript ion
Conductor: Stranded tinned copper
Insulation: XLPE
sheath: XLPE
导体: 镀锡铜绞线
绝缘: 交联聚乙烯
护套: 交联聚乙烯
特性:
Characteristics
Type::14AWG、 12AWG、10AWG
Rated temperature: -40~﹢90℃
Rated Rating: 600V
Weathering Resistance: Sun Res.
Burning Behavior: VW-1
线规: 14AWG、 12AWG、10AW
额定温度: -40~﹢90℃
额定电压: 600V
耐气候性:: 耐光照
阻燃:VW-1
|
项目Item
|
单位
|
技术参数Data
|
|||
|
环境温度Ambient Temperature
|
℃
|
-40 ～＋90,Dry and Wet
|
|||
|
额定电压 Rated Rating
|
V
|
600V
|
|||
|
测试电压 Test voltage
|
AC(V)
|
3000V AC
|
|||
|
芯数Conductor NO.
|
NO.
|
1
|
|||
|
导体
Conductor
|
标称截面
Cross section
|
AWG
|
14
|
12
|
10
|
|
导体结构
Diameter of wires/No.
|
n*mm
|
30/0.30
|
47/0.30
(65/0.254)
|
74/0.30
|
|
|
截流能力
rated current (60℃)
|
A
|
20
|
25
|
30
|
|
|
绝缘
Insulation
|
最小平均厚度
Min. Average thickness
|
mm
|
1.143
|
1.143
|
1.143
|
|
护套
Jacket
|
最小平均厚度
Min. Average thickness
|
mm
|
0.762
|
0.762
|
0.762
|
|
成品电线外径
Cable dia.
|
mm
|
5.5±0.2
|
6.2±0.2
|
7.2±0.2
|
|
|
导体电阻（20℃）
|
Ω/km
|
≤8.96
|
≤5.64
|
≤3.55
|
|
声明：由我司生产的所有规格的光伏电缆，其外径平均值的上限值可由客户与本司协商而定，上述外径值仅为本公司的标准外径。
Declaration: Hereon we confirm that the upper limit of mean overall diameter for all the specification of cables for photovoltaic-systems ,which are manufactured by our company, shall be established by agreement between purchaser and us.
