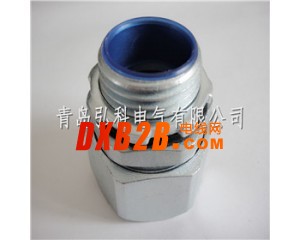

| TE 外牙型金属接头 External thread metal connector | ||||||
 |
材 质：优质锌合金 表面镀层：镀锌、镀铬 温度范围：-40℃～+120℃ 特 性：●良好的机械性能和耐磨性 ●连接金属软管与开孔的箱体或为内螺纹的设备 说 明：订货请注明螺纹标准及适配软管，其他规格可依要求定制 |
|||||
| 青岛弘科电气有限公司 李先生 13687658273 QQ：2458619691 www.honcul.com |
||||||
| 型号Item No. | 螺纹标准 Thread Type | 适配软管 Adapter Hose | ||||
| 英制Inch | 公制Metric | 德制DIN | 英制Inch | 公制Metric | ||
| TE006 | G1/4" | M14*1.5 | PG7 | 3/16" | Φ6 | |
| TE008 | G3/8" | M16*1.5 | PG9 | 1/4" | Φ8 | |
| TE010 | G3/8" | M16*1.5 | PG9 | 5/16" | Φ10 | |
| TE012 | G3/8" | M20*1.5 | PG11/PG13.5 | 3/8" | Φ12 | |
| TE015 | G1/2" | M20*1.5/M24*1.5 | PG13.5/PG16 | 1/2" | Φ15 | |
| TE020 | G3/4" | M27*2.0/M30*2.0 | PG21 | 3/4" | Φ20 | |
| TE025 | G1" | M33*2.0/M36*2.0 | PG29 | 1" | Φ25 | |
| TE032 | G1-1/4" | M42*2.0/M48*2.0 | PG29 | 1-1/4" | Φ32 | |
| TE038 | G1-1/2" | M48*2.0/M60*2.0 | PG36/PG42 | 1-1/2" | Φ38 | |
| TE051 | G2" | M60*2.0/M72*2.0 | PG48 | 2" | Φ51 | |
| TE064 | G2-1/2" | M76*2.0 | - | 2-1/2" | Φ64 | |
| TE075 | G3" | M88*2.0 | - | 3" | Φ75 | |
| TE100 | G4" | M114*2.0 | - | 4" | Φ100 | |
