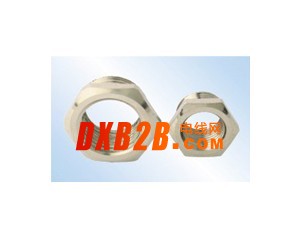

点击图片查看原图
nfig="{"showResult":false,"feature":"WP_WIDGET_OFFER_DETAIL","showTitle":false}" style="margin-bottom: 8px; font-family: Tahoma, Arial, 宋体, sans-serif; font-size: 12px; line-height: 18px;">
nfig="{}">
nfig="{"name":"region-detail-feature","direction":"vertical"}">
nfig="{"showOn":["mod-detail-description"],"title":"详细信息","tabConfig":{"trace":"tabdetail","showKey":"mod-detail-description"}}" ready-to-show="true" style="margin: 0px 0px 32px; overflow: hidden; width: auto;">
螺牙规格:公制牙（Metric),PG牙,G牙及NPT牙。
产品材质：采用铜镀镍制成。
工作温度:-40℃到+110℃,短时间可以达到120℃。
产品特性:大螺纹转变成小螺纹.
特殊说明：除标准规格外，可按技术要求加工成各种不同螺纹之间的转换变径。（如M牙变M牙，M牙变PG牙，G牙等等）
|
产品规格
|
螺纹长度（L）
|
高度（H)
|
宽度（W）
|
基本包装
|
||||
|
产品编号
|
外螺纹（D1)
|
内螺纹(D2)
|
||||||
|
BJ-M16/M12
|
M16
|
M12
|
6.0
|
8.5
|
18
|
50pcs
|
||
|
BJ-M20/M16
|
M20
|
M16
|
6.5
|
9.0
|
24
|
|||
|
BJ-M25/M20
|
M25
|
M20
|
7.5
|
10.0
|
30
|
|||
|
BJ-M32/M25
|
M32
|
M25
|
8.0
|
11.5
|
39
|
25pcs
|
||
|
BJ-M40/M32
|
M40
|
M32
|
9.0
|
12.5
|
43
|
|||
|
BJ-M50/M40
|
M50
|
M40
|
10.0
|
14.0
|
57
|
5pcs
|
||
|
BJ-M63/M50
|
M63
|
M50
|
10.0
|
14.0
|
64
|
|||
|
BJ-PG9/PG7
|
PG9
|
PG7
|
6.0
|
8.5
|
17
|
50pcs
|
||
|
BJ-PG11/PG9
|
PG11
|
PG9
|
6.5
|
8.5
|
20
|
|||
|
BJ-PG13.5/PG11
|
PG13.5
|
PG11
|
6.5
|
9.0
|
22
|
|||
|
BJ-PG16/PG13.5
|
PG16
|
PG13.5
|
6.5
|
9.5
|
24
|
|||
|
BJ-PG21/PG16
|
PG21
|
PG16
|
7.5
|
10.0
|
30
|
25pcs
|
||
|
BJ-PG29/PG21
|
PG29
|
PG21
|
8.0
|
11.5
|
39
|
|||
|
BJ-PG36/PG29
|
PG36
|
PG29
|
9.0
|
12.5
|
50
|
|||
|
BJ-PG42/PG36
|
PG42
|
PG36
|
10.0
|
14.0
|
57
|
5pcs
|
||
|
BJ-PG48/PG42
|
PG48
|
PG42
|
10.0
|
14.0
|
64
|
|||
|
备注：
|
本产品规格为常规产品规格，如对产品技术有特殊要求接受定制。
|
|||||||
