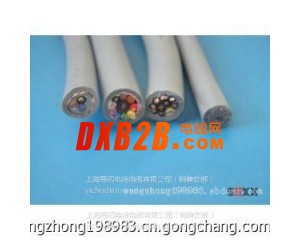

耐弯曲聚氨酯护套屏蔽拖链电缆的详细描述:
应用安装范围
The range of application:
适用于干燥或潮湿的室内,无强应力缓释或强制引导的自由连续往复运动下的安装,工业使用环境下的
频繁弯曲场合,如激光机械切割机、木工机械、机床加工设备、物流输送系统、起重机场合等,
对。用于大行程场合!
It is suitable for dry or wet rooms and installation without strong stress or
free continuous reciprocating movement. It is also can be used in
working places of laser cutting , Woodworking Machine, machine tool equipment,
logistics conveyer system, crane and other related equipments.for the long travel!
电缆特性Character:
防水、防油、耐寒、抗紫外线、耐磨、阻燃,电磁屏蔽抗干扰好
Waterproofing; oil resistance; cool resistance; abrasion resistance; flame resistance; anti-ultraviolet.
弯曲寿命500万次以上,适用于快速移动场合。Bending for life: above 5,000,000times
电缆结构Construction:
导 体:多股超细精绞无氧铜丝,符合VDE0295CLASS 6标准
Conductor: Fine strands of oxygen-free copper wire, acc. to VDE0295 CLASS 6
绝 缘:特殊TPE绝缘Insulation: special TPE
颜 色:≥0.5mm 黑色数字白色号码编号,3芯以上带有黄绿接地线(黄绿可选)
Colour: ≥0.5mm Cores black with consecutive white numbering. 3 cores or more with green/yellow earth wire
护 套:改低粘度强力挤压内护套,PUR材质,耐油。
Sheath: special PUR; oil resistance
屏 蔽:镀锡铜网编织屏蔽,密度80%以上。
Shielding: tinned copper brainded shieldingdentity: above 80%
护 套:特殊改性PUR护套
黑色(RAL9005)灰色(RAL7001)橙色(RAL2003)Sheath: special PUR black(RAL9005) grey(RAL7001) orange(RAL2003)
额 定 电 压:截面<0.5mm2: 300/300V 截面≥0.5mm2: 300/500V
Related voltage: SQ<0.5mm2: 300/300V SQ≥0.5mm2: 300/500V
测 试 电 压:2000VTest voltage: 2000V
使用温度范围 :固定安装: -50°C 至 +80°C
移动安装: - 40°C 至 +80°C。
The working temperature: fixed: -50°C ----- +80°C moved: - 40°C ----- +80°C
最小弯曲半径:固定安装:5×电缆外径;
移动安装:当行程<10米时,弯曲半径为6.8×d, 当行程≥10米时,弯曲半径为7.5×d。
Minimun bending radius: fixed: 5×d
moved: When travel < 10 m, bending radius of 7.5 x d, <>
When travel ≥10 m, bending radius of 15 x d.
