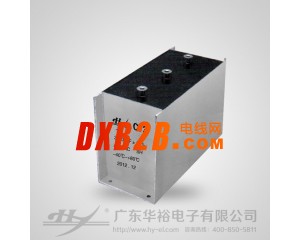

点击图片查看原图
主要应用/Application
广泛应用于电力电子设备中交流滤波场合。
Widely used in for power electronic equipment，ACfilter applications.
产品特点/Characteristics
电介质：聚丙烯薄膜
结构：金属化膜干式结构
封装：金属外壳，阻燃（UL94V-0级）环氧封装
引出：镀锡铜螺母引出
高电流，大容量
低自感，低损耗
具有自愈性
Dielectric：Polypropylene film
Construction：Extended metalized film ，dry connection
Coating：Aluminum case with resin sealing.
Flame retardant execution（UL94V-0）
Terminals：Copper nut or screw leads
High current，high capacitance
Low losses，low inductance
Self healing
技术性能/Specifications
|
引用标准/Reference standards
|
GB/T 17702 IEC 61071 GB/T 12747
|
|
工作温度范围/Operating temperature range
|
-40℃～85℃
|
|
容量范围/Capacitance
|
3×20μF～3×500μF
|
|
额定电压/Rated Voltage
|
400Vac～1000Vac
|
|
容量偏差/Tolerance
|
±5% ±10%
|
|
极间耐电压/Test voltage between terminals
|
2.0Un 10s 25℃±5℃
|
|
极壳耐电压/Test voltage between terminals and case
|
3000V 50Hz 60s，25℃±5℃
|
|
损耗角正切/Dissipation factor
|
tgδ≤2×10-3 at 25℃±5℃，100Hz
|
|
绝缘电阻/Insulation resistance
|
C×R≥5000s，at 100Vdc，25℃±5℃，60s
|
|
预期寿命/Life expectancy
|
200000h at Ur and 70℃，30000h at Urms
|
