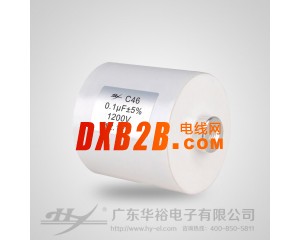

点击图片查看原图
主要应用/Application
广泛应用于大功率的高频谐振设备中
Widely used in high power high frequency resonant device
产品特点/Characteristics
电介质：聚丙烯薄膜
结构：双面金属化与金属化膜内串结构
封装：外包阻燃迈拉胶带，阻燃（94V-0级）环氧封装
引出： M6铜螺母或焊片引出
高电压、高频率、高dv/dt特性
能承受大电流
Dielectric：Polypropylene film
Structure: double metal and metal film inner series structure
Coating：Polyester tape wrapping with resin sealing.
Flame retardant execution（UL94V-0）
Terminals：M6 copper nut or lug
High voltage, high frequency, high dv\/dt characteristics
Can withstand high current
技术性能/Specifications
|
引用标准/Reference standards
|
GB/T 17702 IEC 61071
|
|
工作温度范围/Operating temperature range
|
-40℃～85℃
|
|
容量范围/Capacitance
|
0.06μF～8μF
|
|
额定电压/Rated Voltage
|
1200Vdc～5000Vdc
|
|
容量偏差/Tolerance
|
±5%;±10%
|
|
极间耐电压/Test voltage between terminals
|
1.5Ur 60s 25℃±5℃
|
|
极壳耐电压/Test voltage between terminals and case
|
3000V 50Hz 60s，25℃±5℃
|
|
损耗角正切/Dissipation factor
|
tgδ≤10×10-4 at 25℃±5℃，1kHz
|
|
绝缘电阻/Insulation resistance
|
C×R≥5000s，at 100Vdc，25℃±5℃，60s
|
|
耐电流冲击能力/Withstand strike current ability
|
dv/dt＞1000V/μs
|
|
杂散电感/Stray inductance
|
≤30nH
|
|
有效电流/Effective current
|
30A～100A
|
|
预期寿命/Life expectancy
|
200000h at Ur and 70℃
|
