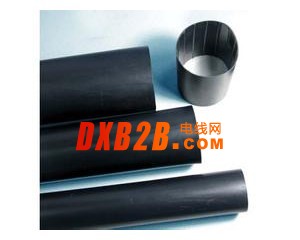

点击图片查看原图
产品特点：
1 抗紫外线
2 半硬非阻燃
3 起缩温度：≥70℃
4 终缩温度：≥125℃
5 使用温度：-45℃~125℃
6 热缩比例：3：1
半硬带胶中壁热缩管规格：
|
型号 (mm) |
供应尺寸(mm)
|
回缩后尺寸(mm) |
管型 |
标准长度
|
|
|
内径 (最小值) |
内径 (最大值) |
壁厚 (最小值) |
|||
|
BH-RA2 8/2 |
8 |
2 |
1.7 |
o |
1000-1500mm |
|
BH-RA2 12/3 |
12 |
3 |
2.0 |
o |
1000-1500mm |
|
BH-RA2 16/5 |
16 |
5 |
2.2 |
o |
1000-1500mm |
|
BH-RA2 19/5 |
19 |
5 |
2.5 |
o |
1000-1500 mm |
|
BH-RA2 22/6 |
22 |
6 |
2.5 |
o |
1000-1500mm |
|
BH-RA2 28/6 |
28 |
6 |
2.5 |
o |
1000-1500 mm |
|
BH-RA2 33/8 |
33 |
8 |
2.5 |
o |
1000-1500 mm |
|
BH-RA2 40/12 |
40 |
12 |
2.5 |
o |
1000-1500 mm |
|
BH-RA2 55/16 |
55 |
16 |
2.7 |
o |
1000-1500 mm |
|
BH-RA2 65/19 |
65 |
19 |
2.8 |
o |
1000-1500 mm |
|
BH-RA2 75/22 |
75 |
22 |
3.0 |
o |
1000-1500 mm |
|
BH-RA2 85/25 |
85 |
25 |
3.0 |
o |
1000-1500 mm |
|
BH-RA2 95/25 |
95 |
25 |
3.0 |
o |
1000-1500 mm |
|
BH-RA2 115/34 |
115 |
34 |
3.0 |
o |
1000-1500 mm |
|
BH-RA2 140/42 |
140 |
42 |
3.0 |
o |
1000-1500 mm |
|
BH-RA2 160/50 |
160 |
50 |
3.0 |
o |
1000-1500 mm |
|
BH-RA2 180/58 |
180 |
58 |
3.0 |
o |
1000-1500 mm |
|
BH-RA2 205/65 |
205 |
65 |
3.0 |
o |
1000-1500 mm |
|
BH-RA2 235/65 |
235 |
65 |
3.0 |
o |
1000-1500 mm |
|
BH-RA2 265/75 |
265 |
75 |
3.0 |
o |
1000-1500 mm |
|
BH-RA2 300/85 |
300 |
85 |
3.0 |
o |
1000-1500 mm |
|
BH-RA2 350/100 |
350 |
100 |
3.0 |
o |
1000-1500 mm |
产品尺寸可按客户要求制定
