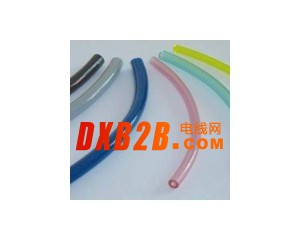

TPU软管
Application
应用
■ used in mechanics,toys.
机械，玩具
■ medical instrument,pneumatic tools.
医疗器械，气动工具
Features/Benefits
特性/优点
■ Excellent mechanical property and resistant tearing.
具有优良力学性能及抗撕裂性。
■ Outstanding resistance against pressure,corrosion,aging,abrasion and oil.
具有极佳耐压性，耐腐蚀性，耐老化性，耐磨性及耐油性
■ Excellent elasticity,quick recovery.
弹性好，不性挤压和曲折，恢复力佳。
■ Conforms to the environmental protecting standards:EN71-3, EN1122
符合绿色环保标准：EN71-3, EN1122
Operating temperature range
使用温度范围
■ -40℃~120℃
Approvals/Specification
认证/符合标准
■ GB/T17219-1998
Application
应用
■ used in mechanics,toys.
机械，玩具
■ medical instrument,pneumatic tools.
医疗器械，气动工具
Features/Benefits
特性/优点
■ Excellent mechanical property and resistant tearing.
具有优良力学性能及抗撕裂性。
■ Outstanding resistance against pressure,corrosion,aging,abrasion and oil.
具有极佳耐压性，耐腐蚀性，耐老化性，耐磨性及耐油性
■ Excellent elasticity,quick recovery.
弹性好，不性挤压和曲折，恢复力佳。
■ Conforms to the environmental protecting standards:EN71-3, EN1122
符合绿色环保标准：EN71-3, EN1122
Operating temperature range
使用温度范围
■ -40℃~120℃
Approvals/Specification
认证/符合标准
■ GB/T17219-1998
|
Specification Values性能指标 |
||
|
Property
|
性能
|
Value指标
|
|
Tensile strength
|
拉伸强度
|
≥10.4
|
|
Elongation
|
≥100
|
|
|
Tear strength
|
撕裂强度
|
>10
|
|
Disability
|
45
|
|
|
Abrasion Resistivity
|
耐磨耗
|
38
|
|
Hardness
|
硬度<邵氏A>
|
85~98
|
规格尺寸/颜色
■ inside diameter: ф3.0mm~ф30.0mm ■ 内径：ф3.0mm~ф30.0mm
wall thickness:0.3mm~2.0mm 壁厚：0.3mm~2.0mm
■ colors :ALL colors are available. ■ 颜色：全色
