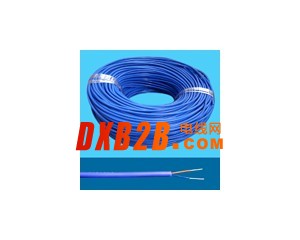

点击图片查看原图
执行标准：Q/IRMV3－2008
产品特性：
1、额定电压：300/500V
2、工作温度：-60～+200℃
3、导 体：裸铜导体或绞合镀锡铜线
4、绝 缘：FEP 铁氟龙
5、护 套：硅橡胶
6、颜 色：红/黄/兰/白/黑/黄绿/棕/绿等
特点/用途：
在长期潮湿环境中使用，电性能及防水、防霉性能优越。弯曲性能优良，最小弯曲半径为电缆外径16倍，可移动使用。
使用于交流额定电压450/750V及以下各种移动式电机、钢铁、航空、电厂、石化等高温环境中使用。
交货要求：
按双方合同协议商定，允许不小于10米的短段交货。其数量应不超过交货总长度的10%。
规格结构及技术参数：
|
芯数×截面
（mm2） |
导体结构
根数/线径（mm） |
绝缘厚度
（mm） |
绝缘外径 （ mm ）
|
护套厚度 （ mm ）
|
平均外径 （ mm ）
|
20 ℃时导体直流电阻 （ Ω /km ）
|
|
2 × 0.08
|
7/0.12
|
0.20
|
0.78
|
0.80
|
2.40
|
245
|
|
3 × 0.08
|
7/0.12
|
0.20
|
0.78
|
1.0
|
3.80
|
245
|
|
4 × 0.08
|
7/0.12
|
0.20
|
0.78
|
1.0
|
4.00
|
245
|
|
5 × 0.08
|
7/0.12
|
0.20
|
0.78
|
1.20
|
4.50
|
245
|
|
6 × 0.08
|
7/0.12
|
0.20
|
0.78
|
1.40
|
5.20
|
245
|
|
7 × 0.08
|
7/0.12
|
0.20
|
0.78
|
1.40
|
5.20
|
245
|
|
2 × 0.12
|
7/0.15
|
0.25
|
0.95
|
0.90
|
3.80
|
163
|
|
3 × 0.12
|
7/0.15
|
0.25
|
0.95
|
1.0
|
4.10
|
163
|
|
4 × 0.12
|
7/0.15
|
0.25
|
0.95
|
1.0
|
4.30
|
163
|
|
5 × 0.12
|
7/0.15
|
0.25
|
0.95
|
1.20
|
5.0
|
163
|
|
6 × 0.12
|
7/0.15
|
0.25
|
0.95
|
1.20
|
5.20
|
163
|
|
7 × 0.12
|
7/0.15
|
0.25
|
0.95
|
1.20
|
5.20
|
163
|
|
8 × 0.2
|
7/0.15
|
0.25
|
0.95
|
1.20
|
5.60
|
163
|
|
10 × 0.12
|
7/0.15
|
0.25
|
0.95
|
1.30
|
6.40
|
163
|
|
12 × 0.12
|
7/0.15
|
0.25
|
0.95
|
1.30
|
6.80
|
163
|
|
19 × 0.12
|
7/0.15
|
0.25
|
0.95
|
1.30
|
7.40
|
163
|
|
2 × 0.2
|
7/.20
|
0.25
|
1.10
|
1.20
|
4.60
|
90.4
|
|
3 × 0.2
|
19/0.12
|
0.25
|
1.10
|
1.30
|
5.0
|
90.4
|
|
3 × 0.2
|
7/0.20
|
0.25
|
1.10
|
1.50
|
5.50
|
90.4
|
|
4 × 0.2
|
7/0.20
|
0.25
|
1.10
|
1.20
|
5.0
|
90.4
|
|
5 × 0.2
|
7/0.20
|
0.25
|
1.10
|
1.20
|
5.40
|
90.4
|
|
5 × 0.2
|
19/0.12
|
0.25
|
1.10
|
1.50
|
6.0
|
90.4
|
|
6 × 0.2
|
7/0.20
|
0.25
|
1.10
|
1.2
|
5.80
|
90.4
|
|
7 × 0.2
|
7/0.20
|
0.25
|
1.10
|
1.2
|
5.80
|
90.4
|
|
8 × 0.2
|
7/0.20
|
0.25
|
1.10
|
1.20
|
6.0
|
90.4
|
|
10 × 0.2
|
7/0.20
|
0.25
|
1.10
|
1.20
|
6.80
|
90.4
|
|
12 × 0.2
|
7/0.20
|
0.25
|
1.10
|
1.40
|
7.50
|
90.4
|
|
19 × 0.2
|
7/0.20
|
0.25
|
1.10
|
1.40
|
8.20
|
90.4
|
|
2 × 0.35
|
19/0.16
|
0.25
|
1.30
|
0.80
|
4.20
|
53.1
|
|
3 × 0.35
|
19/0.16
|
0.25
|
1.30
|
1.10
|
5.0
|
53.1
|
|
4 × 0.35
|
19/0.16
|
0.25
|
1.30
|
1.20
|
5.50
|
53.1
|
|
5 × 0.35
|
19/0.16
|
0.25
|
1.30
|
1.30
|
6.20
|
53.1
|
|
6 × 0.35
|
19/0.16
|
0.25
|
1.30
|
1.40
|
6.80
|
53.1
|
|
7 × 0.35
|
19/0.16
|
0.25
|
1.30
|
1.40
|
6.80
|
53.1
|
|
8 × 0.35
|
19/0.16
|
0.25
|
1.30
|
1.40
|
7.0
|
53.1
|
|
9 × 0.35
|
19/0.16
|
0.25
|
1.30
|
1.50
|
7.80
|
53.1
|
|
10 × 0.35
|
19/0.16
|
0.25
|
1.30
|
1.50
|
8.20
|
53.1
|
|
12 × 0.35
|
19/0.16
|
0.25
|
1.30
|
1.50
|
8.40
|
53.1
|
|
14 × 0.35
|
19/0.16
|
0.25
|
1.30
|
1.50
|
8.80
|
53.1
|
|
19 × 0.35
|
19/0.16
|
0.25
|
1.30
|
1.50
|
9.50
|
53.1
|
|
2 × 0.5
|
19/0.18
|
0.25
|
1.40
|
1.20
|
5.20
|
40.1
|
|
3 × 0.5
|
19/0.18
|
0.25
|
1.40
|
1.20
|
5.50
|
40.1
|
|
4 × 0.5
|
19/0.18
|
0.25
|
1.40
|
1.40
|
6.20
|
40.1
|
|
5 × 0.5
|
19/0.18
|
0.25
|
1.40
|
1.40
|
6.60
|
40.1
|
|
6 × 0.5
|
19/0.18
|
0.25
|
1.40
|
1.40
|
7.0
|
40.1
|
|
7 × 0.5
|
19/0.18
|
0.25
|
1.40
|
1.40
|
7.0
|
40.1
|
|
8 × 0.5
|
19/0.18
|
0.25
|
1.40
|
1.40
|
7.40
|
40.1
|
|
9 × 0.5
|
19/0.18
|
0.25
|
1.40
|
1.40
|
8.0
|
40.1
|
|
10 × 0.5
|
19/0.18
|
0.25
|
1.40
|
1.50
|
8.60
|
40.1
|
|
12 × 0.5
|
19/0.18
|
0.25
|
1.40
|
1.50
|
8.80
|
40.1
|
|
14 × 0.5
|
19/0.18
|
0.25
|
1.40
|
1.50
|
9.20
|
40.1
|
|
17 × 0.5
|
19/0.18
|
0.25
|
1.40
|
1.60
|
10.2
|
40.1
|
|
19 × 0.5
|
19/0.18
|
0.25
|
1.40
|
1.60
|
10.2
|
40.1
|
|
2 × 0.75
|
19/0.23
|
0.25
|
1.70
|
1.10
|
5.60
|
24.60
|
|
3 × 0.75
|
19/0.23
|
0.25
|
1.70
|
1.40
|
6.50
|
24.60
|
|
4 × 0.75
|
19/0.23
|
0.25
|
1.70
|
1.50
|
7.20
|
24.60
|
|
5 × 0.75
|
19/0.23
|
0.25
|
1.70
|
1.50
|
7.60
|
24.60
|
|
6 × 0.75
|
19/0.23
|
0.25
|
1.70
|
1.50
|
8.10
|
24.60
|
|
7 × 0.75
|
19/0.23
|
0.25
|
1.70
|
1.50
|
8.10
|
24.60
|
|
8 × 0.75
|
19/0.23
|
0.25
|
1.70
|
1.50
|
8.60
|
24.60
|
|
10 × 0.75
|
19/0.23
|
0.25
|
1.70
|
1.60
|
10.0
|
24.60
|
|
12 × 0.75
|
19/0.23
|
0.25
|
1.70
|
1.60
|
10.30
|
24.60
|
|
14 × 0.75
|
19/0.23
|
0.25
|
1.70
|
1.60
|
10.80
|
24.60
|
|
19 × 0.75
|
19/0.23
|
0.25
|
1.70
|
1.80
|
12.10
|
24.60
|
|
2 × 1
|
19/0.26
|
0.25
|
1.80
|
1.20
|
6.0
|
20.4
|
|
3 × 1
|
19/0.26
|
0.25
|
1.80
|
1.20
|
6.20
|
20.4
|
|
4 × 1
|
19/0.26
|
0.25
|
1.80
|
1.20
|
6.80
|
20.4
|
|
5 × 1
|
19/0.26
|
0.25
|
1.80
|
1.40
|
7.60
|
20.4
|
|
6 × 1
|
19/0.26
|
0.25
|
1.80
|
1.40
|
8.20
|
20.4
|
|
7 × 1
|
19/0.26
|
0.25
|
1.80
|
1.40
|
8.20
|
20.4
|
|
8 × 1
|
19/0.26
|
0.25
|
1.80
|
1.40
|
8.60
|
20.4
|
|
10 × 1
|
19/0.26
|
0.25
|
1.80
|
1.60
|
10.40
|
20.4
|
|
12 × 1
|
19/0.26
|
0.25
|
1.80
|
1.60
|
10.80
|
20.4
|
|
14 × 1
|
19/0.26
|
0.25
|
1.80
|
1.60
|
11.20
|
20.4
|
|
19 × 1
|
19/0.26
|
0.25
|
1.80
|
1.80
|
12.60
|
20.4
|
|
2 × 1.5
|
19/0.32
|
0.30
|
2.25
|
1.0
|
6.50
|
12.7
|
|
3 × 1.5
|
19/0.32
|
0.30
|
2.25
|
1.40
|
7.60
|
12.7
|
|
4 × 1.5
|
19/0.32
|
0.30
|
2.25
|
1.40
|
8.20
|
12.70
|
|
5 × 1.5
|
19/0.32
|
0.30
|
2.25
|
1.50
|
9.10
|
12.70
|
|
6 × 1.5
|
19/0.32
|
0.30
|
2.25
|
1.50
|
9.80
|
12.70
|
|
7 × 1.5
|
19/0.32
|
0.30
|
2.25
|
1.50
|
9.80
|
12.70
|
|
8 × 1.5
|
19/0.32
|
0.30
|
2.25
|
1.60
|
10.60
|
12.70
|
|
10 × 1.5
|
19/0.32
|
0.30
|
2.25
|
1.60
|
12.20
|
12.70
|
|
12 × 1.5
|
19/0.32
|
0.30
|
2.25
|
1.80
|
13.0
|
12.7
|
|
14 × 1.5
|
19/0.32
|
0.30
|
2.25
|
1.80
|
13.60
|
12.70
|
|
19 × 1.5
|
19/0.32
|
0.30
|
2.25
|
1.80
|
14.90
|
12.70
|
|
2 × 2.5
|
19/0.41
|
0.40
|
2.80
|
1.40
|
8.40
|
7.43
|
|
3 × 2.5
|
19/0.41
|
0.40
|
2.80
|
1.40
|
8.80
|
7.43
|
|
4 × 2.5
|
19/0.41
|
0.40
|
2.80
|
1.50
|
9.80
|
7.43
|
|
5 × 2.5
|
19/0.41
|
0.40
|
2.80
|
1.50
|
10.60
|
7.43
|
|
6 × 2.5
|
19/0.41
|
0.40
|
2.80
|
1.60
|
11.6
|
7.43
|
|
7 × 2.5
|
19/0.41
|
0.40
|
2.80
|
1.60
|
11.6
|
7.43
|
|
8 × 2.5
|
19/0.41
|
0.40
|
2.80
|
1.80
|
12.80
|
7.43
|
|
10 × 2.5
|
19/0.41
|
0.40
|
2.80
|
1.80
|
14.80
|
7.43
|
|
12 × 2.5
|
19/0.41
|
0.40
|
2.80
|
1.80
|
15.20
|
7.43
|
|
14 × 2.5
|
19/0.41
|
0.40
|
2.80
|
2.0
|
16.40
|
7.43
|
|
19 × 2.5
|
19/0.41
|
0.40
|
2.80
|
2.0
|
18.0
|
7.43
|
|
2 × 4
|
37/0.37
|
0.40
|
3.40
|
1.40
|
9.60
|
4.81
|
|
3 × 4
|
37/0.37
|
0.40
|
3.40
|
1.40
|
10.20
|
4.81
|
|
4 × 4
|
37/0.37
|
0.40
|
3.40
|
1.60
|
11.4
|
4.81
|
|
5 × 4
|
37/0.37
|
0.40
|
3.40
|
1.60
|
12.40
|
4.81
|
|
6 × 4
|
37/0.37
|
0.40
|
3.40
|
1.8
|
13.8
|
4.81
|
|
7 × 4
|
37/0.37
|
0.40
|
3.40
|
1.8
|
13.8
|
4.81
|
|
2 × 0.35+2 × 0.14
|
19/0.16
|
7/0.16
|
1.30
|
0.95
|
1.5
|
6.0
|
|
2 × 0.35+4 × 0.14
|
19/0.16
|
7/0.16
|
1.30
|
0.95
|
1.4
|
6.30
|
|
3 × 0.2+2 × 0.4
|
26/0.10
|
52/0.10
|
1.10
|
1.35
|
0.90
|
5.20
|
|
3 × 0.35+2 × 0.5
|
19/0.16
|
19/0.18
|
1.30
|
1.40
|
1.20
|
6.0
|
|
3 × 0.75+1 × 0.5
|
19/0.23
|
19/0.18
|
1.70
|
1.40
|
1.10
|
6.30
|
|
4 × 0.75+2 × 0.2
|
19/0.23
|
7/0.20
|
1.70
|
1.0
|
2.0
|
8.80
|
|
3 × 0.35+4 × 0.1
|
19/0.16
|
7/0.15
|
1.30
|
0.95
|
1.30
|
,
6.30
|
|
2 × 0.35+6 × 0.14
|
19/0.16
|
7/0.16
|
1.30
|
0.95
|
1.30
|
6.30
|
|
6 × 0.2+2 × 0.3
|
19/0.12
|
19/0.16
|
1.10
|
1.30
|
1.20
|
6.0
|
