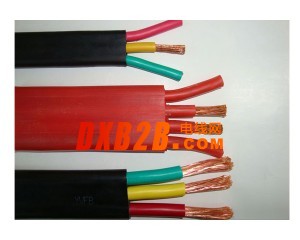

点击图片查看原图
用途
本产品适用于发电、冶金、化工、港口及矿山等恶劣环境作移动电器设备之间电器连接。
型号：YGCB 、YGCB-HF46R、 YGCB-YVFR YVFB YFFB YVFPB YFFPB
额定电压：0.6/1kV
工作温度：-60℃-+180℃
规格及参考数据
|
标称截面mm2 |
线芯Φmm |
绝缘厚度mm |
护套厚度mm | 间距mm | 电缆外径 mm | 重量(kg) |
| 4×1 | 1.29 | 0.8 | 1.6 | 1 | 17.76×6.09 | 225 |
| 6×1 | 1.29 | 0.8 | 1.6 | 1 | 25.54×6.09 | 3.8 |
| 8×1 | 1.29 | 0.8 | 1.6 | 1 | 33.32×3.09 | 360 |
| 4×1.5 | 1.56 | 1 | 1.6 | 1 | 20.44×6.76 | 291 |
| 6×1.5 | 1.56 | 1 | 1.6 | 1 | 29.56×6.76 | 360 |
| 8×1.5 | 1.56 | 1 | 1.6 | 1 | 38.68×6.76 | 469 |
| 4×2.5 | 2.05 | 1.4 | 1.6 | 1.5 | 27.1×8.05 | 333 |
| 6×2.5 | 2.05 | 1.4 | 1.6 | 1.5 | 39.8×8.05 | 536 |
| 8×2.5 | 2.05 | 1.4 | 1.6 | 1.5 | 52.5×8.05 | 608 |
| 4×4 | 2.60 | 1.8 | 1.7 | 1.7 | 33.3×9.6 | 457 |
| 6×4 | 2.60 | 1.8 | 1.7 | 1.7 | 49.1×9.6 | 790 |
| 4×6 | 3.15 | 2 | 1.9 | 2.0 | 38.4×11.5 | 615 |
| 6×6 | 3.15 | 2 | 1.9 | 2.0 | 56.7×11.5 | 1098 |
| 3×10 | 4.4 | 2.5 | 2.4 | 2.4 | 37.8×14.2 | 702 |
| 6×10 | 4.4 | 2.5 | 2.4 | 2.4 | 73.2×14.2 | 1428 |
| 3×25 | 6.81 | 2.8 | 2.7 | 2.8 | 48.23×17.81 | 1645 |
| 6×25 | 6.81 | 2.8 | 2.7 | 2.8 | 93.86×17.81 | 3325 |
| 4×35 | 7.9 | 3 | 3 | 3 | 70.6×19.9 | 2181 |
| 3×50 | 9.2 | 3.2 | 3.1 | 3.4 | 59.8×21.8 | 2681 |
| 4×50 | 9.2 | 3.2 | 3.1 | 3.4 | 78.8×21.8 | 3158 |
| 3×70 | 12.6 | 3.4 | 3.3 | 3.8 | 72.4×26 | 2878 |
| 3×120 | 15.4 | 3.8 | 3.07 | 4.2 | 84.8×30.4 | 5157 |
| 3×150 | 16.4 | 4 | 4.1 | 4.4 | 90.2×32.6 | 6171 |
