- 双层结构套管
- 带有粘性内衬，可与塑料、橡胶、金属等紧密的粘结在一起
- 径向收缩比：3:1或4:1，轴向收缩率≤10%
- 收缩温度：开始收缩温度80℃，完全收缩温度110℃
- 工作温度：-55℃~125℃
- 产品通过UL 224认证(UL 编号E142415)
- 阻燃
- 良好的密封防水性能
- 绝缘强度高
- 抗化学试剂及溶剂，耐腐蚀及耐候
- 符合欧盟ROHS指令要求
应用
套管内层为热熔胶，加热至收缩温度时内层会熔融物体的表面上，形成良好的密封，广泛用于各种电线电缆的接续，电器元件的绝缘、密封、防护等。
| 规格尺寸 |
| C-11(3X) |
| |
|
规格
|
内径
|
完全收缩后平均壁厚
|
| |
|
|
收缩前最小内径
|
收缩后最大内径
|
总壁厚
|
胶层厚度
|
| |
|
mm
|
inch
|
mm
|
inch
|
mm
|
inch
|
mm
|
inch
|
mm
|
inch
|
| |
|
|
|
|
|
|
|
|
|
|
3
|
9/64
|
3
|
0.118
|
1.0
|
0.039
|
1 .00
|
0.039
|
0.50
|
0.02 0
|
| |
|
4
|
3/16
|
4
|
0.157
|
1.3
|
0.052
|
1.2 0
|
0.047
|
0.6 0
|
0.024
|
| |
|
6
|
1/4
|
6
|
0.236
|
2.0
|
0.079
|
1.4 0
|
0.055
|
0.7 0
|
0.028
|
| |
|
9
|
3/8
|
9
|
0.354
|
3.0
|
0.118
|
1.6 0
|
0.063
|
0.8 0
|
0.031
|
| |
|
12
|
1/2
|
12
|
0.472
|
4.0
|
0.157
|
1.8 0
|
0.071
|
0.9 0
|
0.035
|
| |
|
15
|
5/8
|
15
|
0.591
|
5.0
|
0.197
|
2 .00
|
0.079
|
1 .00
|
0.039
|
| |
|
18
|
3/4
|
18
|
0.709
|
6.0
|
0.236
|
2 .00
|
0.079
|
1 .00
|
0.039
|
| |
|
24
|
1
|
24
|
0.945
|
8.0
|
0.315
|
2.4 0
|
0.094
|
1.2 0
|
0.047
|
| |
|
30
|
1 3/16
|
30
|
1.181
|
10.0
|
0.394
|
2.4 0
|
0.094
|
1.2 0
|
0.047
|
| |
|
40
|
1 9/16
|
40
|
1.575
|
13.3
|
0.525
|
2.5 0
|
0.098
|
1.2 0
|
0.047
|
| |
|
50
|
2
|
50
|
1.969
|
16.7
|
0.656
|
2.60
|
0.102
|
1.30
|
0.051
|
| |
|
| |
| C-11(4X) |
| |
|
规格
|
内径
|
完全收缩后平均壁厚
|
| |
|
|
收缩前最小内径
|
收缩后最大内径
|
总壁厚
|
胶层厚度
|
| |
|
mm
|
inch
|
mm
|
inch
|
mm
|
inch
|
mm
|
inch
|
mm
|
inch
|
| |
|
|
|
|
|
|
|
|
|
|
4
|
3/16
|
4
|
0.157
|
1 .0
|
0.039
|
1.10
|
0.043
|
0.55
|
0.022
|
| |
|
6
|
1/4
|
6
|
0.236
|
1.5
|
0.059
|
1.40
|
0.055
|
0.70
|
0.028
|
| |
|
8
|
11/32
|
8
|
0.315
|
2 .0
|
0.079
|
1.70
|
0.067
|
0.85
|
0.033
|
| |
|
12
|
1/2
|
12
|
0.472
|
3 .0
|
0.118
|
2.20
|
0.087
|
1.10
|
0.043
|
| |
|
16
|
21/32
|
16
|
0.630
|
4 .0
|
0.158
|
2.30
|
0.091
|
1.15
|
0.045
|
| |
|
20
|
13/16
|
20
|
0.787
|
5 .0
|
0.197
|
2.40
|
0.094
|
1.20
|
0.047
|
| |
|
24
|
1
|
24
|
0.945
|
6 .0
|
0.236
|
2.70
|
0.106
|
1.35
|
0.053
|
| |
|
32
|
1 1/4
|
32
|
1.260
|
8 .0
|
0.315
|
2.90
|
0.114
|
1.45
|
0.057
|
| |
|
40
|
1 1/ 2
|
40
|
1.575
|
10 .0
|
0.394
|
3.00
|
0.118
|
1.50
|
0.059
|
|
|
|

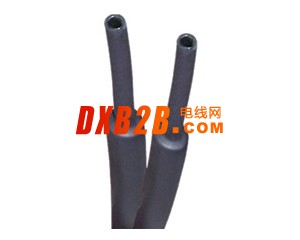

点击图片查看原图
