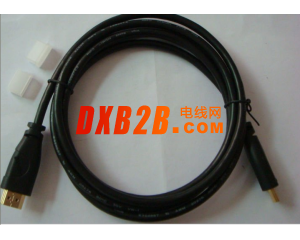

HDMI high speed cable ul20276

detail product description
1.high speed and high HDMI cable 1.4
 2.outer diameter : 7.3
 3.gender :male -male


UL20276 high speed HDMI cable:
1.signal transission pairs : twisted pairs all with AL-mylar,shield drain wire and mylar shield
2.conductor: 32AWG-22AWG tinned anneal stranded copper.
3.shield pair insulation:foamed PE or PET
4.inner condutor；tin copper ,bare copper or copper clad steel
5.braiding material;BC .TC or CCS
6.shield :standard ,tri-shied ,drop cable
7.jacket;flame ,retardant PVC jacket
8.messenger；with customers' requirement
10.OEM and customers' designation



application:
HDTV,DVD,PDP,,TV,L.C.D,ect

CONSTRUCTION:

AWG	Conductor	insulation ID	No.of cores	overall Diameter
		mm		mm
32	7/0.08	0.60	4P+1P+5C	5.00
30	7/0.10	0.80		5.50
28	7/0.127	0.94		6.30
26	7/0.16	1.25		8.00
24	7/0.20	1.50		10.00
22	7/0.254	2.00		11.50
