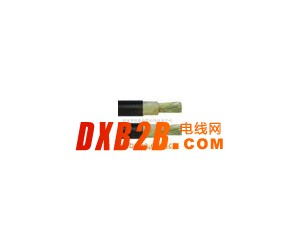

Mobile fire retardant rubber soft cables for mines
|
产品用途:产品供煤矿移动电器设备及采掘机械配套用。
Scope of application:The product necessary uses for the coal mine migration electric appliance equipment and the excavation machinery
执行标准 Standards implemented: MT 818-1999
|
 |
型号名称 Model descriptions
|
型 号
Model
|
名 称
Descriptions
|
|
MY
|
煤矿用移动橡套软电缆
Mobile rubber soft cables for mines |
|
MYQ
|
煤矿用移动轻型橡套软电缆
Mobile light type rubber soft cables for mines |
|
MYP
|
煤矿用移动屏蔽橡套软电缆
Mobile shielded rubber soft cables for mines |
|
MC
|
采煤机橡套软电缆
Rubber soft cables for coal cutter in mines |
|
MCP
|
采煤机屏蔽橡套软电缆
Shielded rubber soft cables for coal cutter in mines |
|
MZ
|
煤矿用电钻橡套电缆
Electric drill rubber cables for mines |
|
MZP
|
煤矿用电钻屏蔽橡套电缆
Electric drill shielded rubber cables for mines |
使用特性
Service characteristics
|
型 号
Model
|
MYQ MZ MZP MY MYP MC MCP
|
额定电压
U0/U Rated voltage |
0.3/0.5kv 0.38/0.66kv 0.66/1.14kv |
电缆长期允许工作温度
Long-term service temperature of the cable conductor |
65℃ |
电缆的最小弯曲半径
Minimun bending radius |
6D |
电缆规格 Specifications
|
型 号
Model
|
芯 数
Core number
|
额定电压 KV
Rated voltage
|
标称截面mm2
Nominal sectional
|
|
动力线芯
Core for power
|
地线芯
Core for ground
|
控制线芯
Pilot wire core
|
|
MY
|
1 |
0.38/0.66 |
50-150 |
- |
- |
| 3+1 |
3x4-3x70 |
1x4-1x25 |
- |
|
MZ MZP
|
3+1、3+1+1 |
0.3/0.5 |
3X2.5-3X4 |
1X2.5-1X4 |
1X2.5-1X4 |
|
MYQ
|
2、3、4、7、12 |
0.3/0.5 |
1.0-2.5 |
- |
- |
| 3+1 |
3X1.0-3X2.5 |
1X0.75-1X1.5 |
|
MC
|
3+1+3 |
0.38/0.66 |
3x16-3x50 |
1x4-1x10 |
3x2.5-3x4 |
|
MCP
|
3+1+3 |
0.38/0.66 |
3x16-3x50 |
1x4-1x10 |
3x2.5-3x4 |
| 0.66/1.14 |
3x35-3x95 |
1x6-1x25 |
|
MYP
|
3+1 |
0.38/0.66 |
3x4-3x70 |
1x4-1x25 |
- |
| 0.66/1.14 |
3x10-3x95 |
1x10-1x25 |
电缆主要技术性能
Major technical performances
1、 电缆导体直流电阻
DC resistance of the conductor
型 号
Model |
标称截面
Nominal sectional
(mm2)
|
200C时导体直流电阻(≤Ω/Km)
DC resistance of the conductor at 20℃
|
型 号
Model
|
标称截面
Nominal sectional
(mm2)
|
200C时导体直流电阻(≤Ω/Km)
DC resistance of the conductor at 20℃
|
|
不镀锡
Untinned
|
镀锡
Tinned
|
不镀锡
Untinned
|
镀锡
Tinned
|
| MYQ |
1.0
|
19.5
|
20.0
|
MY
MYP
|
10
|
1.91
|
1.95
|
|
1.5
|
13.3
|
13.7
|
16
|
1.21
|
1.24
|
|
2.5
|
7.98
|
8.21
|
25
|
0.780
|
0.795
|
MZ
MZP |
2.5
|
-
|
8.82
|
35
|
0.554
|
0.565
|
|
4
|
-
|
5.39
|
50
|
0.386
|
0.393
|
MC
MCP |
4
|
-
|
5.09
|
70
|
0.272
|
0.277
|
|
6
|
-
|
3.39
|
95
|
0.206
|
0.210
|
|
10
|
-
|
1.95
|
120
|
0.161
|
0.164
|
|
16
|
-
|
1.24
|
150
|
0.129
|
0.132
|
|
25
|
-
|
0.795
|
185
|
0.106
|
0.108
|
|
35
|
-
|
0.565
|
240
|
0.0801
|
0.0817
|
|
50
|
-
|
0.393
|
300
|
0.0641
|
0.0654
|
MY
MYP |
4
|
4.95
|
5.09
|
400
|
0.0485
|
0.0495
|
|
6
|
3.30
|
3.39
|
-
|
-
|
-
|
2、 电缆的绝缘电阻 Dielectric resistance
|
型 号
Model
|
动力线芯标称截面mm2
Core for power nominal sectional
|
20℃时绝缘电阻
(≥MΩ Km)
Dielectric resistance at 20℃
|
型 号
Model
|
动力线芯标称截面mm2
Core for power nominal sectional
|
20℃时绝缘电阻(≥MΩ Km)
Dielectric resistance at 20℃
|
|
MYQ
|
1.0
|
160
|
MY
MYP
|
10
|
160
|
|
1.5
|
160
|
16
|
120
|
|
2.5
|
160
|
25
|
120
|
|
MZ
MZP
|
2.5
|
160
|
35
|
100
|
|
4
|
160
|
50
|
100
|
|
MC
MCP
|
16
|
120
|
70
|
80
|
|
25
|
120
|
95
|
80
|
|
35
|
100
|
120
|
50
|
|
50
|
100
|
150
|
50
|
|
70
|
80
|
185
|
50
|
|
95
|
80
|
240
|
50
|
|
限制线芯Control core
|
100
|
300
|
50
|
|
MY
MYP
|
4
|
200
|
400
|
50
|
|
6
|
180
|
-
|
-
|
3、电缆其它主要技术性能 Other major technical performances
(型 号 Model:MY MYP MYQ MC MCP MZ MZP)
|
序 号
Serial number
|
项 目
Items
|
技术性能
Technical performances
|
|
1
|
线芯直流电阻(≤Ω/Km)
Core DC resistance |
见上表
See above table |
|
2
|
绝缘电阻(≥MΩ Km)
Insulating resistance |
见上表
See above table |
|
3
|
5min工频电压试验
5min power frequency voltage experiment |
0.66/1.14 |
3.7KV工频电压绝缘不击穿
3.7KV power frequency voltage insulation does not penetrate |
| 0.38/0.66 |
3KV工频电压绝缘不击穿
3KV power frequency voltage insulation does not penetrate |
| 0.3/0.5 |
2KV工频电压绝缘不击穿
2KV power frequency voltage insulation does not penetrate |
| 控制线芯Control core |
1.5KV工频电压绝缘不击穿
1.5KV power frequency voltage insulation does not penetrate |
|
4
|
热延伸试验
The heat extends the experiment |
≤175% |
|
5
|
单根垂直燃烧试验
Single wire burning test |
MT386 |
|
6
|
成束燃烧试验
Group burning test |
最大线芯截面积在50mm2及以上时 符合A类成束燃烧试验要求
Max. core sectional area more than 50mm2 conforms A kind group burning test |
|
7
|
最大线芯截面积在50mm2及以下时 符合B类成束燃烧试验要求
Max. core sectional area more than 50mm2 conforms B kind group burning test |
|
