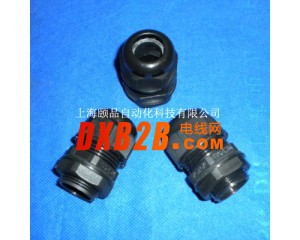

产品名称：EPIN尼龙电缆接头/电缆护套/电缆填料函；
产品材质：尼龙PA6，丁腈橡胶制成；
螺纹规格：公制（M）、德制（PG）、美制（NPT/G）
工作温度：-40℃/＋100℃短时可达＋120℃；
产品颜色：黑色、灰色，其他颜色可订制；
防护等级：配合O形密封圈达到IP68；
产品特性：电缆卡紧范围大，抗拉强可防水防尘、耐酸碱、油脂及一般溶剂。
规格型号：规格齐全，M6-M75,Pg7-Pg48，G1/4"-G5"，NPT1/8"-NPT2"；
|
规格型号(M制) |
电缆卡口范围(mm) |
GL螺纹长度(mm) |
H(mm) |
AG螺纹外径(mm) |
M.M |
|
M12 * 1.5 |
3-6.5 |
8 |
20 |
12.0 |
15 |
|
M12 * 1.5 |
2-5 |
8 |
20 |
12.0 |
15 |
|
M16 * 1.5 |
4-8 |
8 |
22 |
16.0 |
19 |
|
M16 * 1.5 |
2-6 |
8 |
22 |
16.0 |
19 |
|
M16 * 1.5 |
5-10 |
8 |
24 |
16.0 |
22 |
|
M16 * 1.5 |
3-7 |
8 |
24 |
16.0 |
22 |
|
M20 * 1.5 |
6-12 |
9 |
27 |
20.0 |
24 |
|
M20 * 1.5 |
5-9 |
9 |
27 |
20.0 |
24 |
|
M20 * 1.5 |
10-14 |
10 |
28 |
20.0 |
27 |
|
M20 * 1.5 |
7-12 |
10 |
28 |
20.0 |
27 |
|
M25 * 1.5 |
13-18 |
11 |
30 |
25.0 |
33 |
|
M25 * 1.5 |
9-16 |
11 |
30 |
25.0 |
33 |
|
M32 * 1.5 |
18-25 |
11 |
38 |
32.0 |
42 |
|
M32 * 1.5 |
13-20 |
11 |
38 |
32.0 |
42 |
|
M40 * 1.5 |
22-32 |
13 |
45 |
40.0 |
53 |
|
M40 * 1.5 |
20-26 |
13 |
45 |
40.0 |
53 |
|
M50 * 1.5 |
32-38 |
13 |
47 |
50.0 |
60 |
|
M50 * 1.5 |
25-31 |
13 |
47 |
50.0 |
60 |
|
M63 * 1.5 |
37-44 |
14 |
47 |
63.0 |
65 |
|
M63 * 1.5 |
29-35 |
14 |
47 |
63.0 |
65 |
|
规格型号(Pg制) |
电缆卡口范围(mm) |
GL螺纹长度(mm) |
H(mm) |
AG螺纹外径(mm) |
M.M |
|
PG7 |
3-6.5 |
8 |
21 |
12.5 |
15 |
|
PG7 |
2-5 |
8 |
21 |
12.5 |
15 |
|
PG9 |
4-8 |
8 |
22 |
15.2 |
19 |
|
PG9 |
2-6 |
8 |
22 |
15.2 |
19 |
|
PG11 |
5-10 |
8 |
25 |
18.6 |
22 |
|
PG11 |
3-7 |
8 |
25 |
18.6 |
22 |
|
PG13.5 |
6-12 |
9 |
17 |
20.4 |
24 |
|
PG13.5 |
5-9 |
9 |
17 |
20.4 |
24 |
|
PG16 |
10-14 |
10 |
28 |
22.5 |
27 |
|
PG16 |
7-12 |
10 |
28 |
22.5 |
27 |
|
PG21 |
13-18 |
11 |
31 |
28.3 |
33 |
|
PG21 |
9-16 |
11 |
31 |
28.3 |
33 |
|
PG29 |
18-25 |
11 |
39 |
37.0 |
42 |
|
PG29 |
13-20 |
11 |
39 |
37.0 |
42 |
|
PG36 |
22-32 |
13 |
48 |
47.0 |
53 |
|
PG36 |
20-26 |
13 |
48 |
47.0 |
53 |
|
PG42 |
32-38 |
13 |
48 |
52.5 |
60 |
|
PG42 |
25-31 |
13 |
48 |
52.5 |
60 |
|
PG48 |
37-44 |
14 |
49 |
59.3 |
65 |
|
PG48 |
29-35 |
14 |
49 |
59.3 |
65 |
|
规格型号(NPT) |
电缆卡口范围(mm) |
GL螺纹长度(mm) |
H(mm) |
M.M |
|
3/8"NPT |
4-8 |
15 |
22 |
22/19 |
|
3/8"NPT |
2-6 |
15 |
22 |
22/19 |
|
1/2"NPT |
6-12 |
13 |
27 |
24 |
|
1/2"NPT |
5-9 |
13 |
27 |
24 |
|
1/2"NPT |
10-14 |
13 |
28 |
27 |
|
1/2"NPT |
7-12 |
13 |
28 |
27 |
|
3/4"NPT |
13-18 |
13 |
30 |
33 |
|
3/4"NPT |
9-16 |
13 |
30 |
33 |
|
1"NPT |
18-25 |
19 |
38 |
42 |
|
1"NPT |
13-20 |
19 |
38 |
42 |
|
1-1/4"NPT |
18-25 |
16 |
38 |
46/42 |
|
1-1/4"NPT |
13-20 |
16 |
38 |
46/42 |
|
1-1/2"NPT |
22-32 |
20 |
45 |
53 |
|
1-1/2"NPT |
20-26 |
20 |
45 |
53 |
