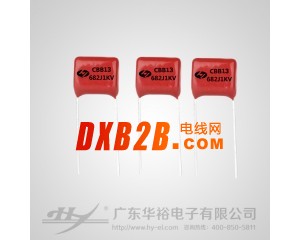

点击图片查看原图
特点/Features
优异的频率和温度特性
即使在高频下，损耗也很小
采用真空浸蜡，绝缘电阻高，防潮性好
适用于彩电及监视器的S校正电路等高频大电流场合
广泛用于高频、直流和脉冲电路中
Excellent frequency and temperature characteristics
Very small loss even at high frequency
High insulation resistance and excellent moisture resistance because of wax impregnation
Most suitable for high frequency, large current circuit and s-correction circuit in monitor and TV sets
Widely used in high frequency, DC and pulse circuits
技术要求/Specifications
|
引用标准 Reference Standard |
GB 10188（IEC60384-13） |
|
气候类别 Climatic Category |
40/070/21（使用温度高于70℃，最高85℃，应于1.67%/℃降低额定电压）（For Temperature higher than 70℃,maximum to 85℃, a derating factor of 1.67% per degree has to be applied on the rated voltage） |
|
额定电压 Rated Voltage |
100V、250V、400V、630V |
|
电容量范围 Capacitance range |
0.0010～0.68μF |
|
电容量偏差Capacitance Tolerance |
±5%(J) ± 10%(J) |
|
耐电压 Voltage proof |
2.0UR (5S) |
|
绝缘电阻 Insulation resistance |
≥50.000MΩ,CR≤0.1μF：（20℃，1min） ≥50.000S, CR＞0.1μF |
|
损耗角正切 Dissipation factor |
≤10×10-4 (1KHZ,20℃) |
