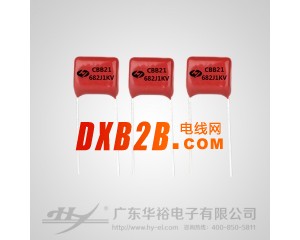

CBB21金属化聚丙烯膜电容器

特点/Features

金属化聚丙烯膜，环氧树脂包封

高频损耗小

内部温升小

绝缘性能好，自愈效果佳

metallized polypropylene film, epoxy resin coating

Low dissipation factor at high frequency

Small inherent temperature rise

High insulation resistance, good self-healing property

用途/Applications

各种直流、交流和脉冲电路、高频较大电流场合

彩电S校正电路

DC,pulse,high frequency and high current circuits

S-Shaping correction of colour TV sets

额定值和特性/Rating and characteristic

引用标准：IEC 384-16（GB10190-88）

温度范围：-40℃~+85℃

标称电容量偏差：：±5%; ±10%

耐电压：1.75UR/10S

绝缘电阻：

C_R≤0.33μF:Rs≥9,000MΩ( 23℃, 1min)

C_R≥0.33μF:C×Rs≥3,000MΩ  (23℃,1min)

损耗角正切：tgδ≤1010^-4 (23℃ F=1KHz)

Climatic category:IEC 384-16(GB10190-88)

Rated temperature:-40℃ ~ +85℃

Capacitance tolerances: ±5% ;  ±10%

Voltage proof:1.75UR/10S

Insulation resistance:

C_R≤0.33μF:Rs≥9,000MΩ( 23℃, 1min)

C_R≥0.33μF:C×Rs≥3,000MΩ  (23℃,1min)

Dissipation factor: gδ≤1010^-4 (23℃ F=1KHz)

此产品关键字：CBB21、CBB22、包封电容、聚丙烯电容
