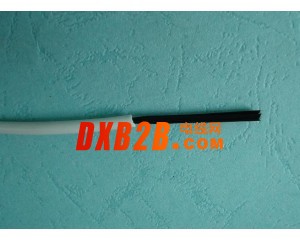

碳纤维硅胶发热线

[产品描述PRODUCT DESCRIPTION]
额定电压:150V
温度范围:80℃
导体:碳纤维
绝缘体:聚氯乙烯
外径公差:士0.15mm
颜色:黑-棕-红-橙-黄-绿-蓝-紫-灰-白-黄/绿等
线径范围：Φ1.5～Φ6.0MM
电阻范围：266 133 66 33 25 17Ω/M
碳纤规格：1K 3K 6K 12K 18K 24K

[特性CHARACTERISTIC]
具有远红外射线，耐高/低温，耐酸/碱,耐燃烧,老化,耐侯性,防霉以及优良的柔软性,电绝缘性满足UL,ROHS的要求．

[适用范围APPLICATION]
适用于冰箱，冷柜，床垫，电热毯，发热制品，按摩器，座垫加热，保温，除霜等组件．

*************************************************************************************

CARBON FIRBEN HEATING WIRE
*Nominal Voitage:150V
*Temperature Range:80℃
*Conductor: Nickel alloy copper
*insulation: PVC
*O.D.Allowance: 士0.15mm
*Aviable: Black-Brown-Red-Orange-Yellow-Green-Blue-Purple-Gray-White-Yellow/green,etc.
*Diameter Range:Φ1.5～Φ6.0MM
*Resister Range: 266 133 66 33 25 17Ω/M
*General specification: 1K 3K 6K 12K 18K 24K

Resistance of high and low temperature anti-acid and alkail fire and aging resistance the inoxidizability resistance of humidity the fine electric insulation and flexible performance be qualified the standard of UL,ROHS.

Apply to the components of the refrigerating equipment the heating product the rice cooker,the massage gadget for the heating,the heat perservation and the defroster etc.,
