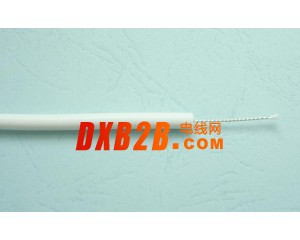

PVC发热线

[产品描述PRODUCT DESCRIPTION]
额定电压:300V
温度范围:-20℃～+105℃
导体:镍合金
绝缘体:聚氯乙烯
外径公差:士0.15mm
颜色:黑-棕-红-橙-黄-绿-蓝-紫-灰-白-黄/绿等
线径范围：Φ1.5～Φ6.0MM
电阻范围：0.1-10000Ω/M

[特性CHARACTERISTIC]
耐高/低温，耐酸/碱,耐燃烧,老化,耐侯性,防霉以及优良的柔软性,电绝缘性，满足UL,ROHS的要求

[适用范围APPLICATION]
适用于冰箱，冷柜，发热制品，医疗器具，毛巾柜，按摩器，座垫加热，保温，除霜等组件．

*************************************************************************************

PVC HEATING WIRE
*Nominal Voitage:300V
*Temperature Range:-20℃～+105℃
*Conductor: Nickel alloy copper
*insulation: PVC
*O.D.Allowance: 士0.15mm
*Diameter Range:Φ1.5～Φ6.0MM
*Resister Range:0.1-10000Ω/M
*Aviable: Black-Brown-Red-Orange-Yellow-Green-Blue-Purple-Gray-White-Yellow/green,etc.

Resistance of high and low temperature anti-acid and alkail fire and aging resistance the inoxidizability resistance of humidity the fine electric insulation and flexible performance be qualified the standard of UL,ROHS.

Apply to the components of the refrigerating equipment the heating product the rice cooker,the massage gadget for the heating,the heat perservation and the defroster etc.,
